Reliable Neonatal ventilation for the premature smallest patients.
A dedicated NICU ventilator with HFNC, nCPAP, NIV-PC, SIPPV, SIMV, PSV,APRV and Volume Target PRVC modes. Tidal volumes from 2 mL with closed-loop accuracy, leak-compensation for uncuffed ET tubes, alarm logic,flow accuracy tuned for the realities of neonatal intensive care.
Detail views
Accurate at 2 mL. Stable through leak.

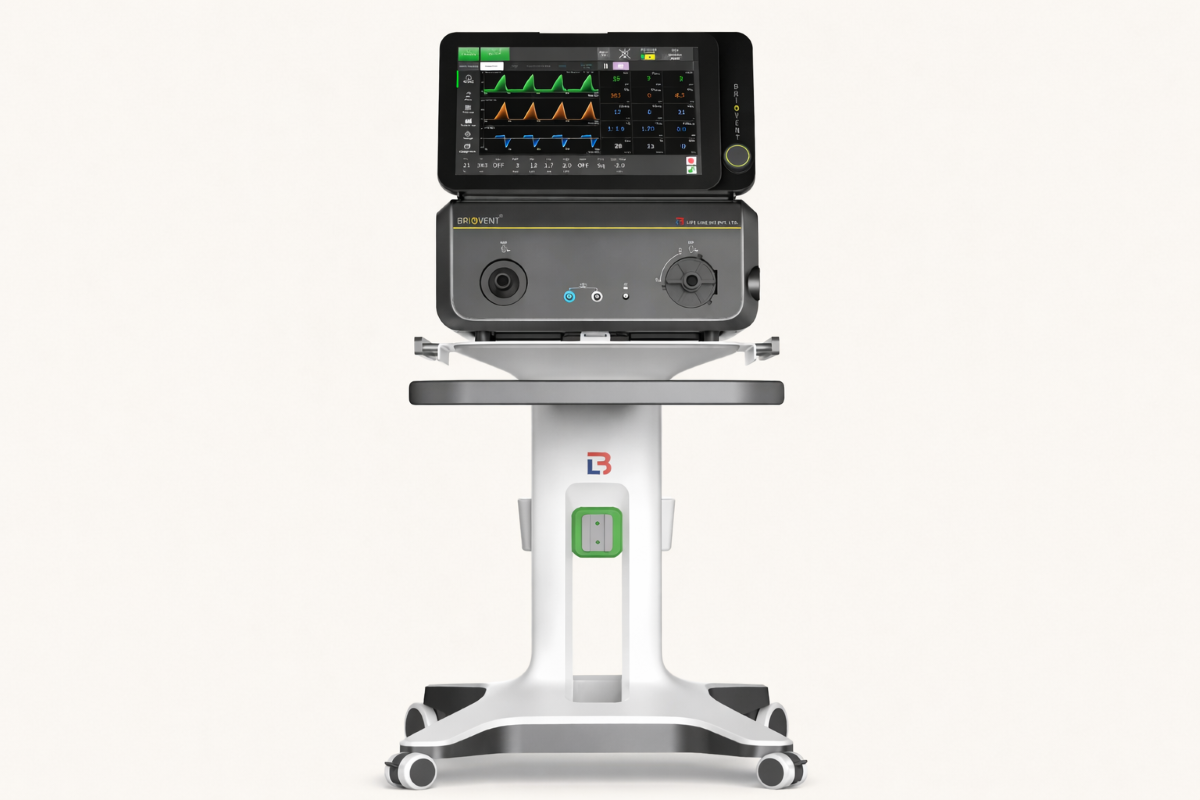

The Briovent Neonatal Ventilator is engineered specifically for VLBW (very low birth weight) and ELBW infants — where every mL of tidal volume matters and uncuffed tube leak is a given.
Conventional Invasive and Non-Invasive, on one platform.
Switch from conventional time-cycled, pressure-limited ventilation to Non Invasive hfnc,nCPAP or nPCV without changing equipment — particularly useful for refractory respiratory failure and air-leak syndromes.
- SIPPV — Synchronised Intermittent Positive Pressure Ventilation
- SIMV — Synchronised Intermittent Mandatory Ventilation
- PSV — Pressure Support Ventilation
- A/C — Assist Control
- nCPAP — Nasal CPAP
- NIV-PC — Non-invasive Pressure Control
- HFNC — High-Flow Oxygen Therapy
- Volume Target PRVC— with PCV/SIMV/PSV
NICU-tuned hardware for accurate flow delivery
| Tidal volume floor | 2 mL (closed-loop accurate) |
|---|---|
| Leak compensation | Up to 50% (uncuffed ET) |
| Proximal Flow Sensor | Reliable and accurate measurement |
| Heated humidifier | Compatible (MR850 / equivalent) |
| Bubble CPAP | Integration supported |
| Display | 15.6" touchscreen |
| Battery | 3+ hours backup |
From 500 g to 14 kg.
Tidal volumes start at 2 mL with high closed-loop accuracy, making the unit safe for premature infants in the 500–1000 g range. Same ventilator covers term neonates and paediatric cases.
- Weight: 0.5 kg to 14 kg
- Tidal volume: 2 mL – 500 mL
- Respiratory rate: 1 – 200 BPM
- HFNC flow: 1 – 20 lpm
- PEEP: 0 – 30 mbar
- FiO₂: 21 – 100%
Alarms & safety
| Apnoea alarm | Auto with backup ventilation |
|---|---|
| High/low pressure | Configurable, two-tier |
| Volume limits | Configurable upper/lower |
| FiO₂ deviation | ±5% auto-alarm |
| Disconnection | Audible + visual |
Full technical specification.
| Patient type | Neonatal & paediatric (0.5 – 14 kg) |
|---|---|
| Ventilation type | Invasive & Non-invasive |
| Modes | PCV, SIMV, PSV, A/C, nCPAP, NIV-PC, HFNC, PRVC |
| Tidal volume | 2 – 500 mL |
| Respiratory rate | 1 – 200 BPM |
| HFNC flow | 1 – 20 lpm |
| PEEP / CPAP | 0 – 30 mbar |
| FiO₂ | 21 – 100% |
| Display | 15.6" capacitive touchscreen |
| Battery backup | ≥ 3 hours |
| Approvals | CDSCO India (MDR 2017), ISO 13485:2016, IEC 60601-1 |
| Warranty | 12 months standard; extended via CMC |
