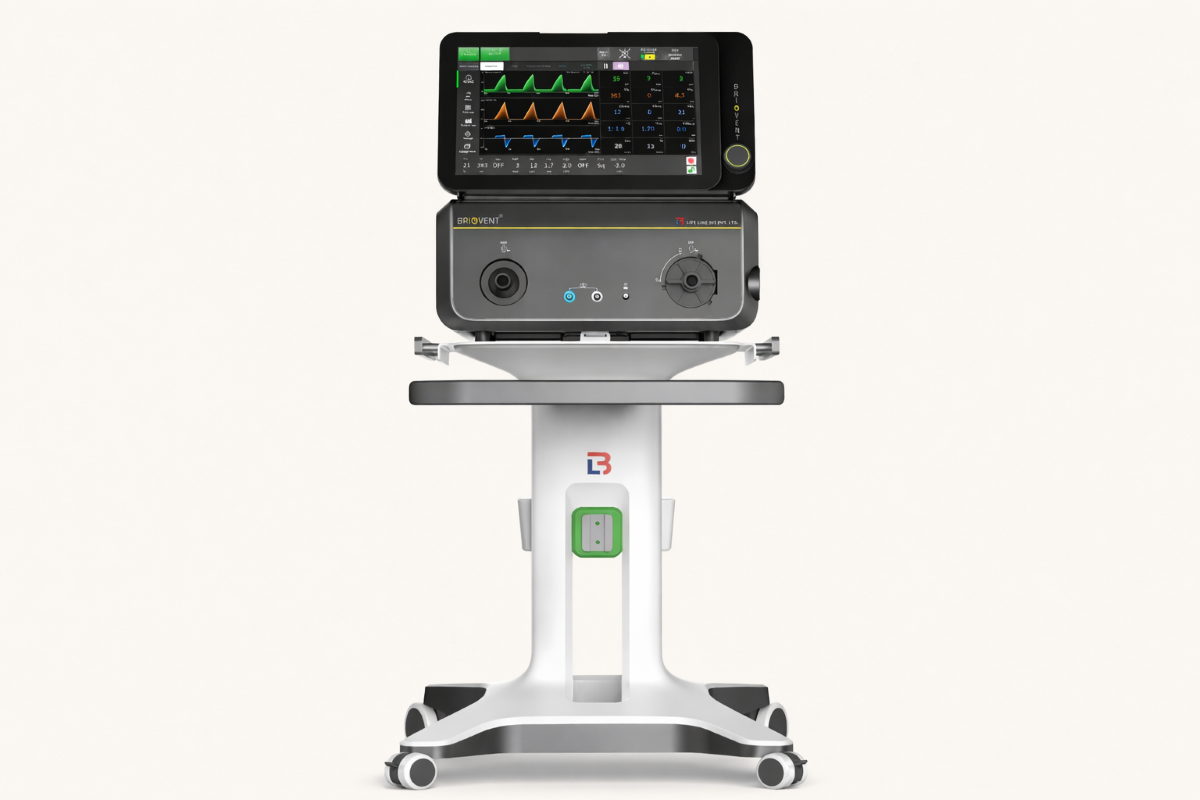

ICU Ventilators for adult and paediatric intensive care.
A complete invasive and non-invasive ventilation platform with VCV, PCV, SIMV, PSV, Biphasic, PRVC and APRV modes. Designed for Indian ICU conditions — touchscreen-led workflow, fast set-up, dual-limb circuit, battery operation, affordable and reliable .
Detail views
Designed as per inputs by clinicians, refined by RTs.
The Briovent ICU Ventilator was built in close consultation with Indian intensivists, respiratory therapists and biomedical engineering teams. Every parameter, alarm and workflow decision was tested in the units where the device would eventually be used.
Full invasive & non-invasive suite.
One platform, all the modes your team is likely to need — from volume-controlled mandatory breaths to pressure-support weaning, with NIV for COPD/cardiogenic pulmonary oedema and PRVC for lung-protective ventilation.
- VCV — Volume-Controlled Ventilation
- PCV — Pressure-Controlled Ventilation
- SIMV (V) / SIMV (P) — Synchronised Intermittent Mandatory Ventilation
- PSV — Pressure Support Ventilation
- CPAP / BiPhasic — Non-Invasive Ventilation
- PRVC — Pressure-Regulated Volume Control
- APRV — Airway Pressure Release Ventilation (optional)
- Manual / Spontaneous, Backup ventilation, Apnoea ventilation
Hardware at a glance

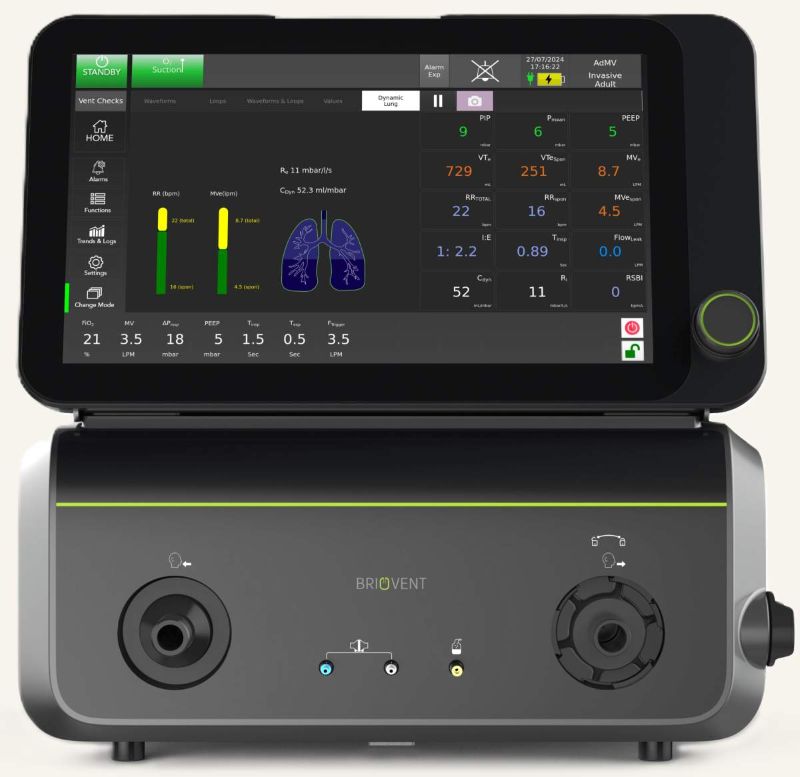

| Display | 15.6" capacitive touchscreen |
|---|---|

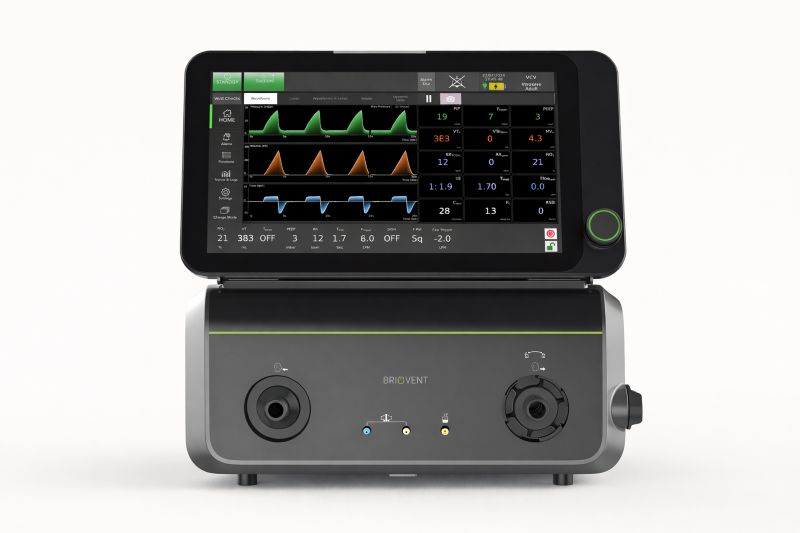

| Circuit | Dual-limb |
| Inspiratory valve | Proportional, high-precision |
| Expiratory valve | autoclavable |

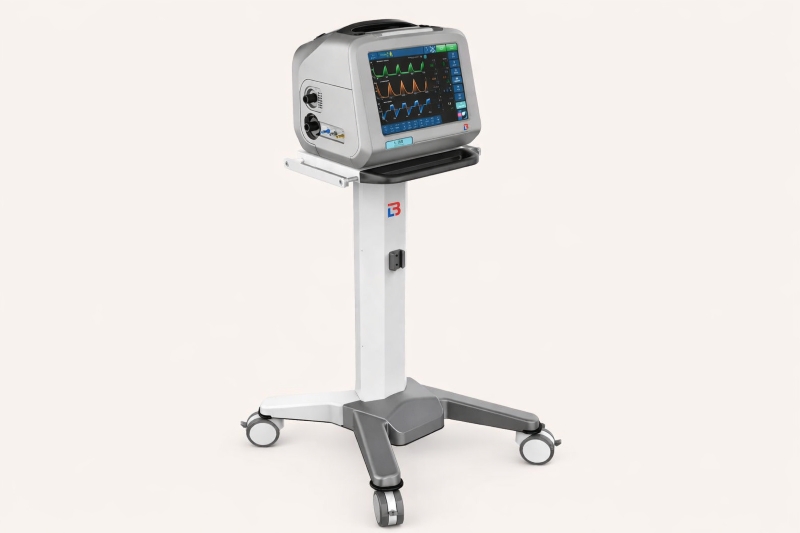

| Internal battery | 3 hours |
| Mounting | Trolley with sealed castors |
| Weight | ~38 kg incl. trolley |
Adult, paediatric, and the edge cases in between.
Tidal volumes from 20 mL(2 ml optional) to 3000 mL with closed-loop accuracy across the range. Use the same unit for a 12 kg paediatric admission tonight and a 95 kg ARDS transfer tomorrow morning.
- Patient weight range: 5 kg to 200+ kg
- Tidal volume: 20 mL – 3000 mL
- Respiratory rate: 1 – 100 BPM
- PEEP: 0 – 50 mbar
- FiO₂: 21 – 100%
- Trigger: flow (0.5–15 L/min) or pressure (-0.5 to -20 cmH₂O)
Workflow features
| Touchscreen UI | Mode-then-parameter flow |
|---|---|
| Loops & trends | P-V, F-V loops; 96 hr trends |
| Nebulisation | Integrated, synchronised |
| Manoeuvres | Insp/exp hold, P0.1, Intrinsic PEEP, Lung Recruitment Tool |
| Alarms | Configurable upper/lower limits, smart silencing |
| Data port | USB + Ethernet for HL7 / DICOM (optional) |
| Languages | English, (others on request) |
Full technical specification.
For tender response or biomedical evaluation, this table is also available as a stamped PDF datasheet — request from info@lifelinebiz.com.
| Device type | Adult & paediatric ICU mechanical ventilator |
|---|---|
| Ventilation type | Invasive & Non-invasive |
| Modes | VCV, PCV, SIMV (V/P), PSV, CPAP, BiPhasic, PRVC, APRV (opt.), Apnoea, Manual |
| Tidal volume | 20 – 3000 mL |
| Respiratory rate | 1 – 100 BPM |
| I:E ratio | 1:10 to 4:1 |
| PEEP / CPAP | 0 – 50 mbar |
| Pressure support | 0 – 90 mbar above PEEP |
| FiO₂ | 21 – 100% |
| Inspiratory flow | up to 240 L/min |
| Trigger | Flow (0.5 – 15 L/min) or pressure (-0.5 to -20 cmH₂O) |
| Display | 15.6-inch capacitive touchscreen, 1920 × 1280 |
| Battery backup | Internal Li-ion, ≥ 3 hours, Extendable upto 6 hours |
| Gas supply | O₂ 3–6 bar |
| Compliance | ISO 80601-2-12, IEC 60601-1, IEC 60601-1-2 |
| Approvals | CDSCO India (MDR 2017), ISO 13485:2016, BIS, GeM listed |
| Warranty | 12 months standard; extended via CMC |
About the Briovent ICU Ventilator
Get a demo unit at your ICU. This week.
Our zonal sales engineers deliver and set up demo units at hospital sites across India for clinical evaluation by your intensivists and RT team.
