04 / Operating Theatre

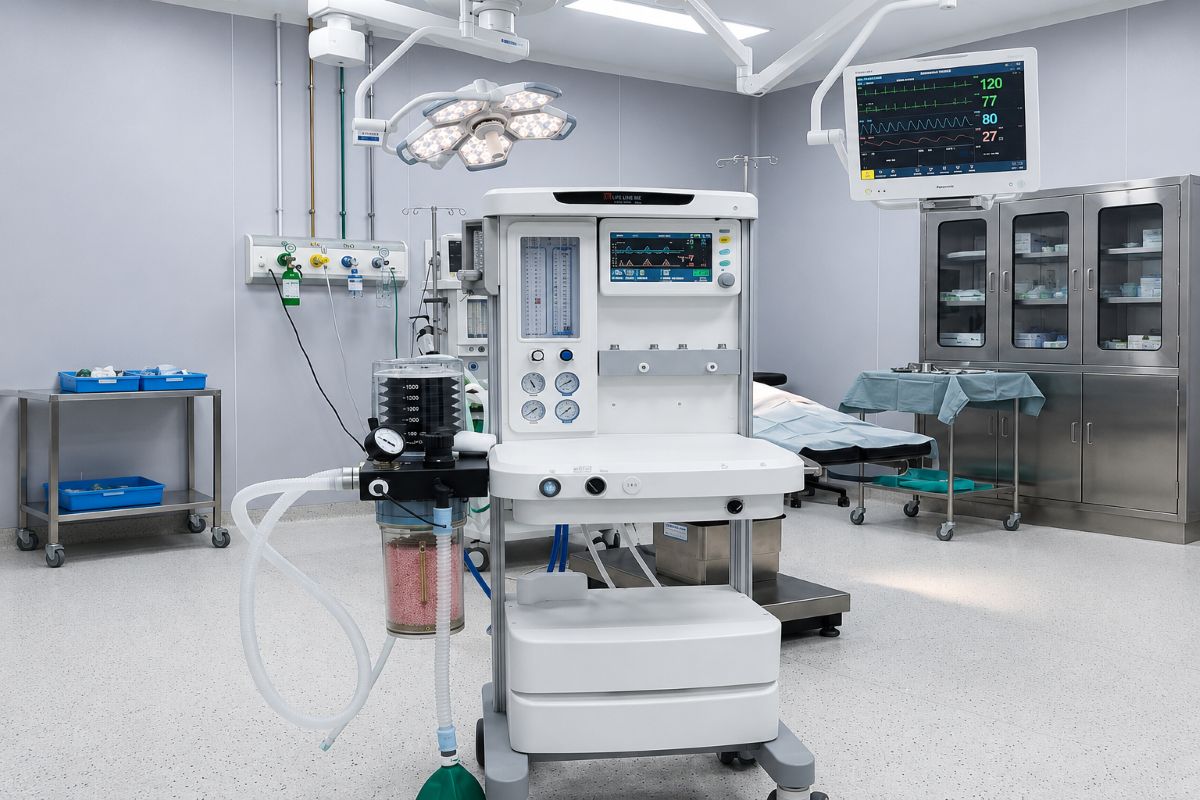

An anesthesia workstation, not just a machine.

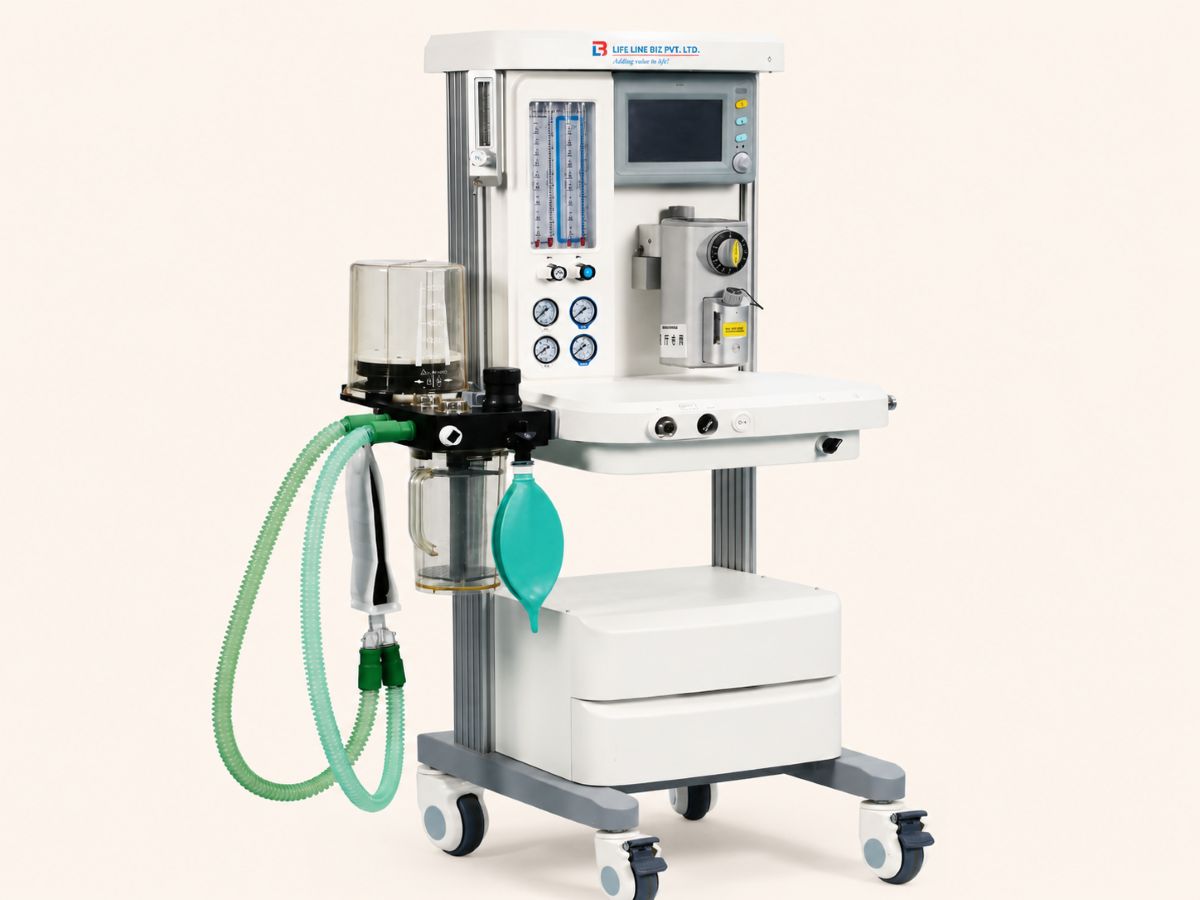

Electronic flow control, dual vaporiser mounting, integrated advanced ventilator with VCV/PCV/PSV/SIMV modes, anesthesia gas monitoring (optional), and AGSS-ready scavenging. Built for everything from minor day-care surgery to long, complex surgery.
Product gallery
Detail views
Ventilation
An ICU-class ventilator on your anesthesia machine.
The integrated ventilator delivers VCV, PCV, PSV SIMV and PRVC(Optional) modes — accurate from paediatric to adult tidal volumes, with low-flow and minimal-flow anesthesia support.
- VCV — Volume Control
- PCV — Pressure Control
- PSV — Pressure Support with apnoea backup
- SIMV(V) and SIMV(P)
- Manual / Spontaneous
- Low-flow & minimal-flow anesthesia compatible
Flow & vaporisers
| Flow control | Electronic with backup mechanical |
|---|---|
| O₂ / Air / N₂O | 2 or 3-gas standard, hypoxic guard |
| Vaporisers | Dual mount, Selectatec compatible |
| Agents | Sevoflurane, Isoflurane, Desflurane |
| Gas analysis | Optional 5-gas monitor |
Workflow
Set up faster. Switch cases cleaner.
Auto-checkout sequence completes pre-use checks in under 3 minutes. Heated absorber prevents condensation in long cases. Quick-release CO₂ canister enables case-to-case turnover without delay.
- Auto self-test (< 3 min)
- Heated CO₂ absorber
- Quick-release canister
- 8-inch touchscreen with mode-led workflow
- 2 GB internal storage, case log
- AGSS connector standard
OT-friendly hardware
| Worktop | Anti-static, drawers + writing surface |
|---|---|
| Trolley | Sealed castors, brake |
| Power | 60-min battery |
| Storage | 2 large drawers + bin |
| Mounting rails or Shelf | For monitors, syringe pumps |
Specifications
Full technical specification.
| Device type | OT-grade anesthesia workstation |
|---|---|
| Gas inputs | O₂, Air, N₂O (pipeline + cylinder backup) |
| Flow control | Electronic with mechanical backup |
| Vaporisers | Dual mount, Selectatec compatible |
| Ventilator modes | VCV, PCV, PSV, SIMV(V/P),PRVC, Manual/Spont |
| Tidal volume | 20 – 1500 mL |
| Respiratory rate | 4 – 100 BPM |
| PEEP | 3 – 30 cmH₂O (electronic) |
| Display | 8" capacitive touchscreen |
| Battery | 60+ min backup |
| Scavenging | AGSS-ready |
| Approvals | CDSCO India, ISO 13485:2016, ISO 80601-2-13, IEC 60601-1 |
| Warranty | 12 months standard |
